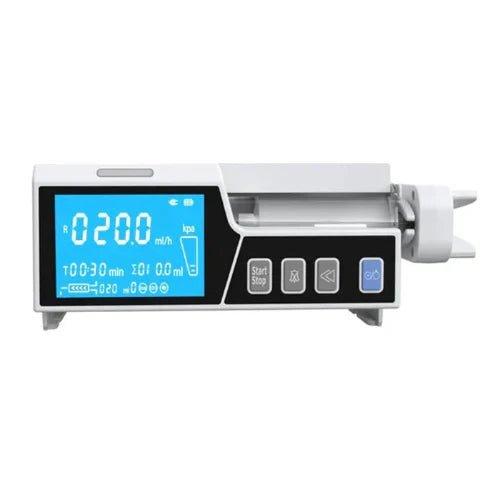

Syringe Infusion Pump – Precise and Reliable Fluid Administration
The Syringe Infusion Pump is designed for accurate and safe administration of fluids, offering customizable settings for different syringe sizes. Whether in hospitals or clinics, this device ensures precision, efficiency, and flexibility in medical procedures.
Key Features:
-
Display: 3.8-inch screen for easy navigation and monitoring
-
Accuracy: Maintains a high precision rate of ±2% for reliable infusion results
-
Battery Life: 4+ hours of continuous operation
-
Infusion Modes: Includes speed, speed + time, and speed + volume infusion modes
-
Injection Time Setting Range: 1 minute to 99:59 minutes
-
KVO Speed Range: 2.5 ml/h for optimal infusion control
-
Lightweight: Only 1.5 kg, making it portable for easy handling
-
Operating Environment: Works efficiently within 5-40°C temperature and <80% relative humidity
Technical Specifications:
| Shape |
Rectangular |
| Display Size |
3.8 inches |
| Weight |
1.5 kg |
| Accuracy |
±2% |
| Battery Working Time |
4 hours |
| KVO Speed Range |
2.5 ml/h |
| Dimensions |
248 x 151.5 x 97 mm |
| Injection Time Setting Range |
1 minute - 99:59 minutes |
| Syringe Types |
Compatible with 5ml, 10ml, 20ml, 30ml, 50ml, and 60ml syringes |
| Infusion Flow Rate Setting Range |
1-1500 mL/h |
| Injection Rate Settings |
- 5 ml syringe: 0.1-150 mL/h
- 10 ml syringe: 0.1-300 mL/h
- 20 ml syringe: 0.1-600 mL/h
- 30 ml syringe: 0.1-900 mL/h
- 50 ml syringe: 0.1-1500 mL/h
|
